Forged Steel Gate Valve

Product Description:

Nominal Diameter:2”
Bore: Full Bore
Nominal Pressure:150LB
Material: F316
Operation: N/A
Design Standard: API600/API602/API6D
Test/Inspection: API598
End Connection: RF FLANGE
Flange standard: ASME/ANSI B16.5
Top Flange: N/A
PS: We can manufacture valves to customers’ requirements.

Share this page:

Related Products

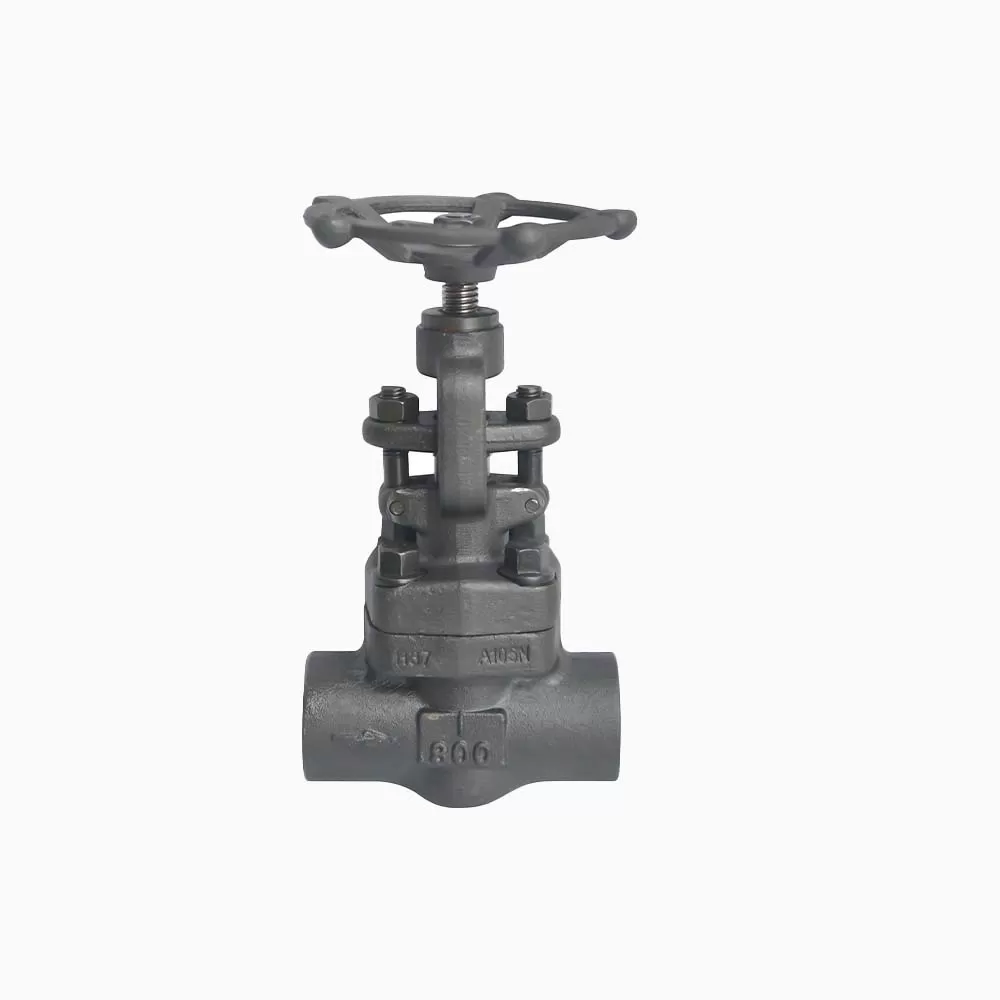

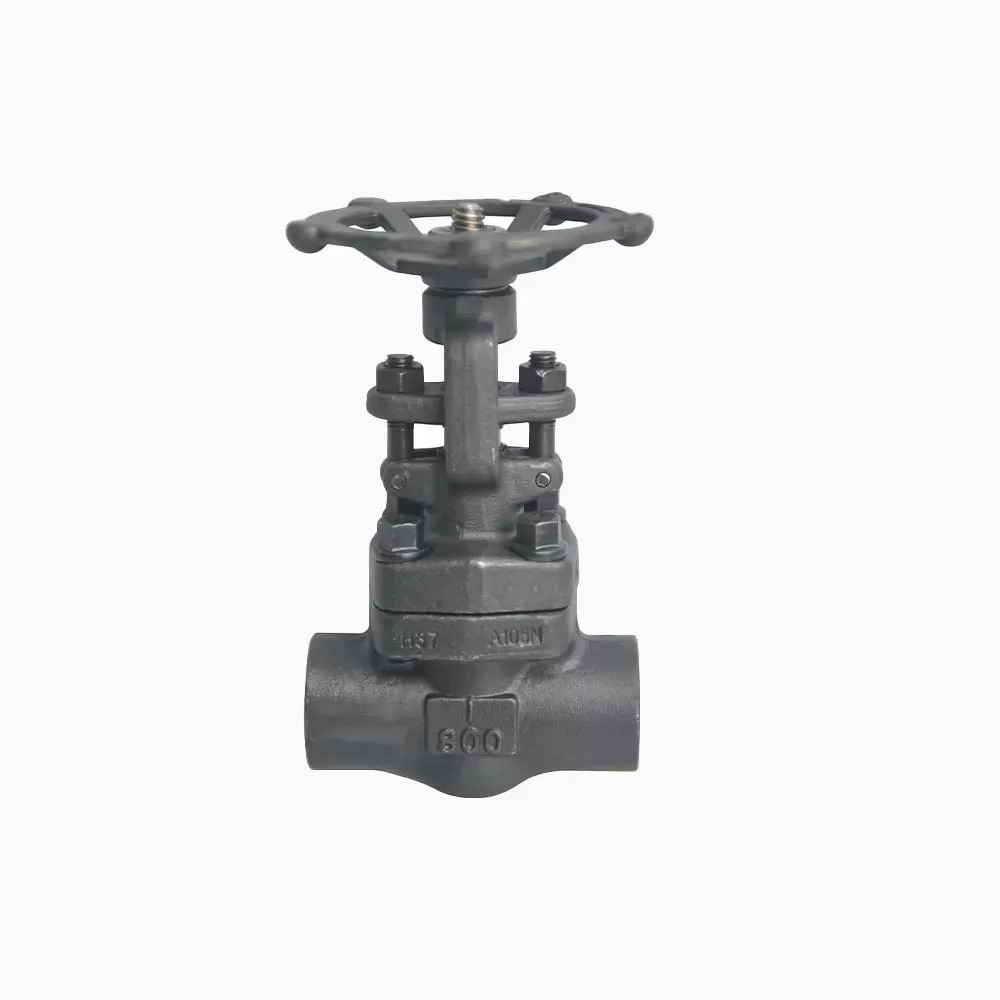

Forged Steel A105N 1” 800LB Butt Weld Gate Valve

Designed for use in high-temperature steam and water, this multipurpose gate valve can be used in a wide variety of general-purpose applications including vents, drains

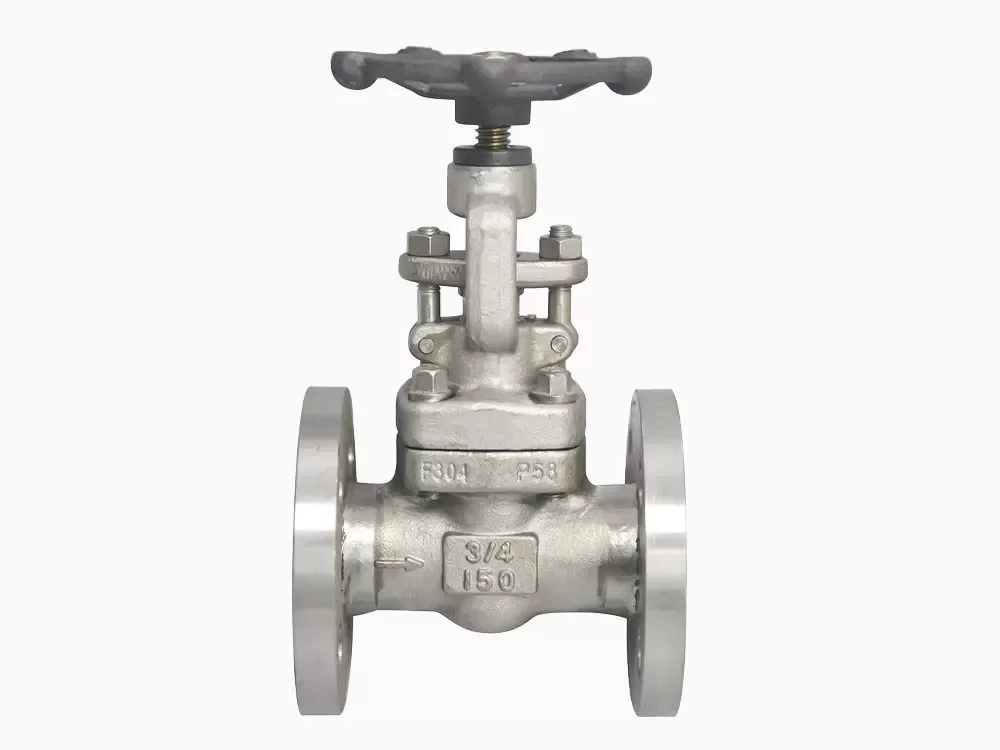

Forged Steel F316 2” 150LB RF FLANGE Gate Valve

Designed for use in high-temperature steam and water, this multipurpose gate valve can be used in a wide variety of general-purpose applications including vents, drains

Forged Steel Gate Valve

Designed for use in high-temperature steam and water, this multipurpose gate valve can be used in a wide variety of general-purpose applications including vents, drains and isolation of compressors, condensers, heaters, pumps, water lines, heat exchangers, bypass lines, flash tanks, control valves, etc.

Description

Specification

Valve Size	1/4 “–2”, DN10–DN50
Pressure Class	150LB–2500LB, PN16–PN420
Materials	Carbon Steel: A105, LF2, Stainless Steel: F304, F304L, F316, F316L, Duplex: F51, F55, Alloy: F1, F5, F5A, F9, F11, F22
Design and Manufacturing Standards	API602, ASME 16.34, BS 5352, BS 6364
Face to Face Standards	API 602
Flange Dimension Standards	SW Socket welding ends according to ASME B16.11, BW butt end by ASME B16.25, NPT threaded connectors according to ASME B1.20.1
Pressure Test Standards	API 598
Fire Safety Test Standards	–
Quality/Product Certifications	ISO9001, ISO14001, ISO18001
Fugitive Emissions	ISO 15848-1, API 622
Valve Operator Options	Hand wheel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator
Shutoff Class	API 598 (Zero Leakage), API 6D
Bore	Full Bore, Reduced Bore
Process Connection Types	SW, NPT, BW, RF, RTJ

Product Overview

Two inch and smaller valves are available with threaded or socket weld ends as standard.
Made from one piece, die-forged bodies.
All internal surfaces are accurately machined to provide maximum performance.
Renewable seat rings are made from hardened stainless steel, faced with Stellite.
The wedge is forged, hardened, ground, and lapped to ensure leak free sealing.
Fully guided wedge, precision machined body channels, for accurate, repeatable seating alignment.
Graphite packing, complete with braided graphite filament yarn anti-extrusion rings, is standard.
Standard body and bonnet materials are carbon steel (ASME SA105), alloy steel (ASME SA182 Gr. F11) and stainless steel (ASME SA182 Gr. F316) Trim for steel valves is 13% chrome stainless steel. 316 stainless steel valves have 316 trim.
Code compliance with ASME B16.34 and the ASME boiler and pressure vessel code, Section I.
