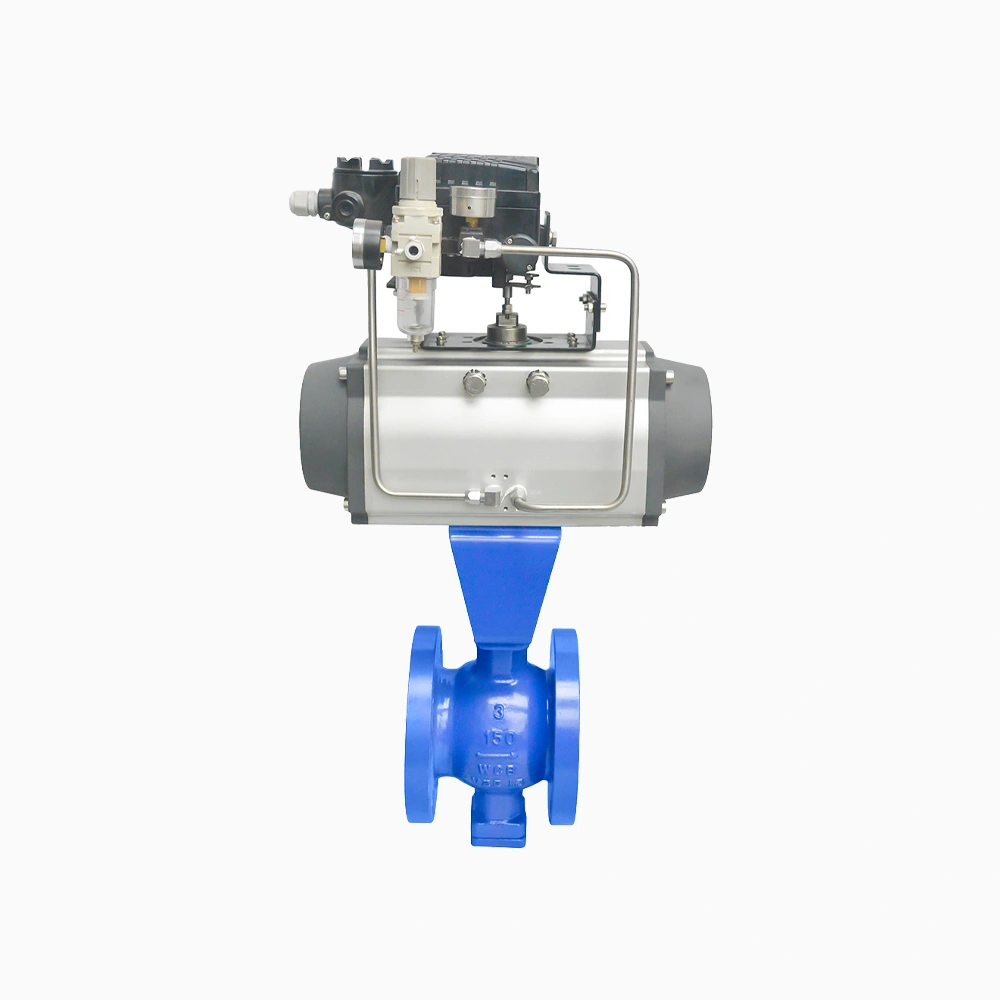

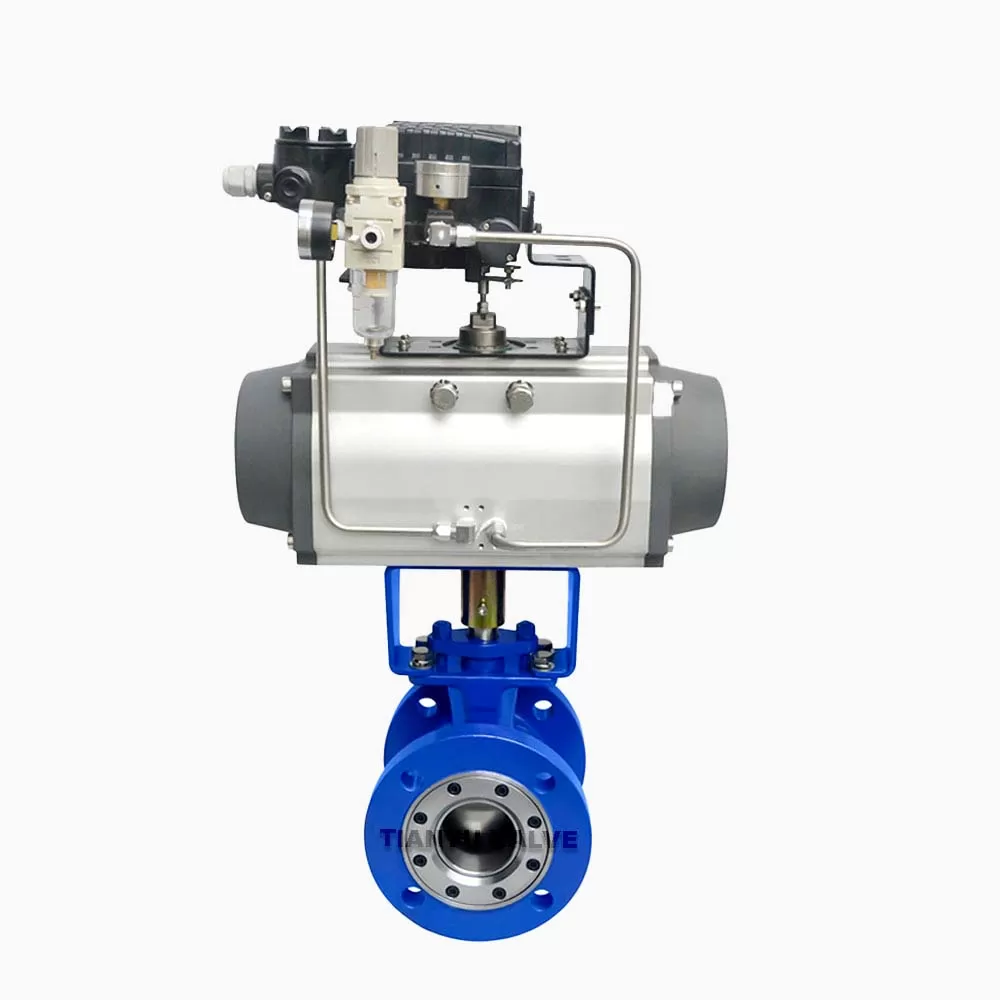

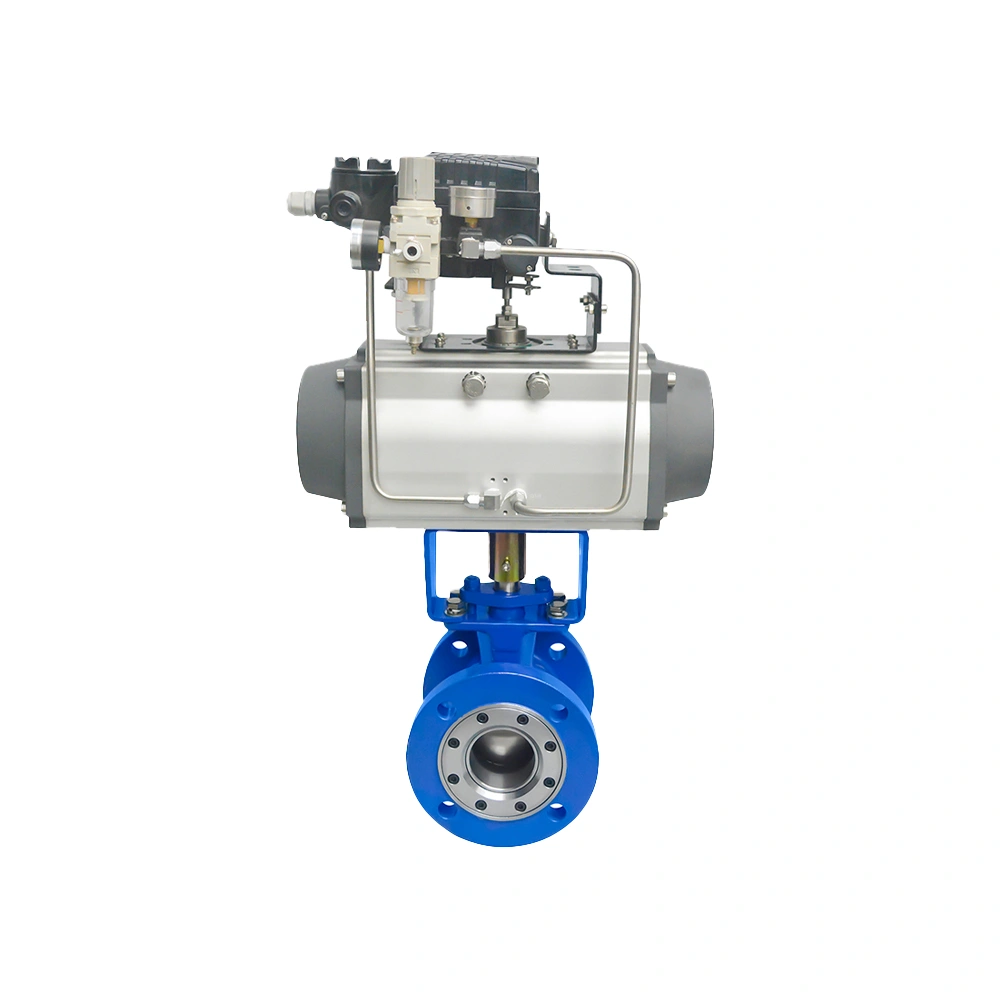

Nominal Diameter: 3”(DN80)
Bore: Full Bore
Nominal Pressure: 150LB
Material: WCB
Operation: Pneumatic Actuator
Design Standard: API 6D
Test/Inspection: API598
End Connection: RF FLANGE
Flange standard: ASME/ANSI B16.5
| Valve Size | 1“–10” |
|---|---|
Pressure Class |
150LB–600LB, PN10–PN64 |
Materials |
WCB, A105, LF2, F316, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M, 4A, 5A |
Design and Manufacturing Standards |
API 6D， API 608，ASME B16.34，ISO 17292，BS5351， |
Face to Face Standards |
ASME B16.10, BS 558, BS12982, ISO 5752 |
Flange Dimension Standards |
ASME B 16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627 |
Pressure Test Standards |
API598 API 6D BS12569 |
Fire Safety Test Standards |
API 6FA API 607 |
Quality/Product Certifications |
ISO9001, ISO14001, ISO18001 |
Fugitive Emissions |
ISO 15848-1, API 622 |
NACE |
NACE MR 0175 |
Valve operator options |
Handwheel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator. |
Shutoff Class |
API 598 (Zero Leakage), API 6D |
Bore |
Full Bore, Reduced Bore |
Process Connection Types |
SW, NPT, BW , RF, RTJ |
Dirty and impurities can be discharged from drain and exhaust outlet

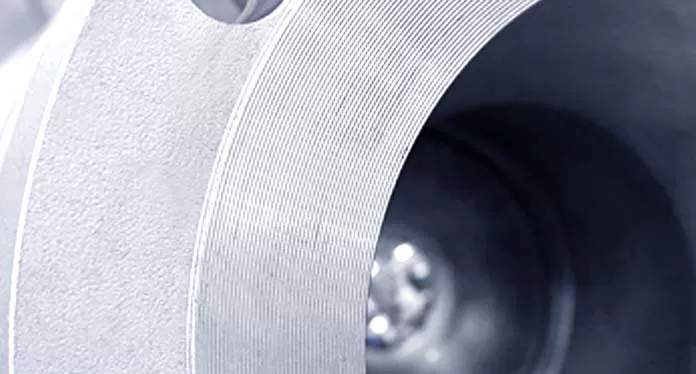

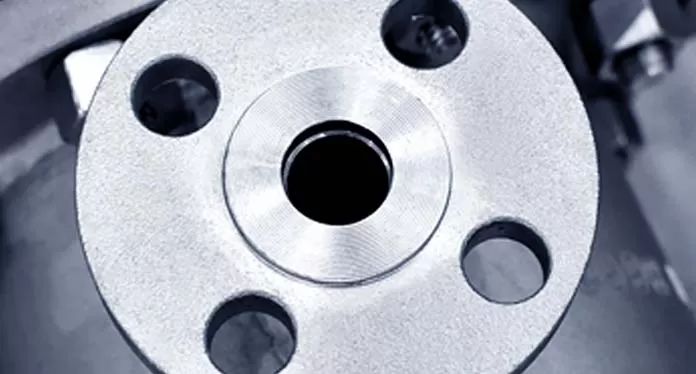

The ASME B16.5 code requires that the flange face(raised face and flat face) has a specific roughness to ensure that this surface be compatible with the gasket and provide a high quality seal.
Our products and services comply with international standards and specifications to make sure that we only produce the best and highest quality products and services to our clients.
We offer tailor-made industrial valves to ensure that our product fits your application standards and demand. TIANYU is ISO, API, MSS, and ASME compliant to guarantee you the highest product quality.
As a business partner, TIANYU makes sure that we commit to our clients’ requested deadline because we very much understand the importance of adhering to the timeline required.
TIANYU’s service does not end once our industrial ball valves are being delivered. Also, we offer warranties and provide customer service to our clients as part of our quality service.
In the petrochemical industry, valves are used to control fluid flow, pressure, and prevent accidents. They are capable of enduring high temperatures and pressures in refinery environments, ensuring safe and smooth operation of processes.
In the power industry, valves are used to control the flow of steam, water, and oil. Globe valves and gate valves in steam pipelines ensure smooth steam transportation, while butterfly valves are commonly used to regulate flow.
In the food and beverage industry, valves are used for fluid transportation and control. These valves need to meet sanitary standards to ensure the safety and quality of food products.
In the environmental protection sector, valves are used in wastewater treatment systems to control the discharge of sewage, ensuring the effectiveness of wastewater treatment. They play an important role in environmental protection and sustainable development.
Send us a message if you have any questions or request a quote. Our experts will give you a reply within 24 hours and help you select the right valve you want.
